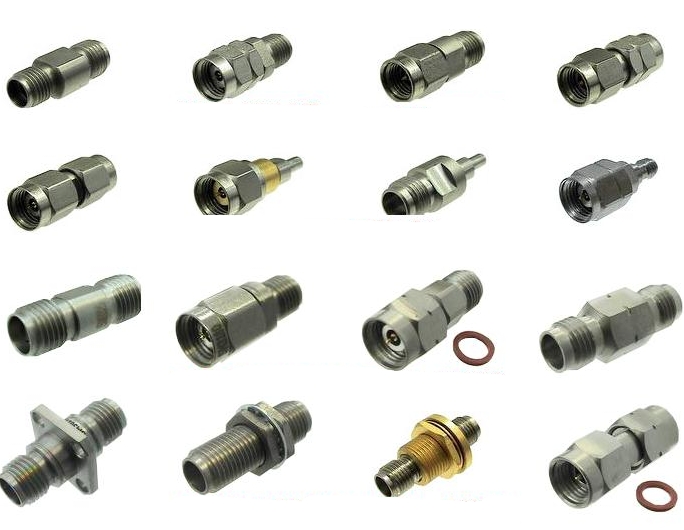

苏州瑞贝斯拥有军品生产质量体系认证,大批量生产DC-65GHZ不锈钢毫米波转接器， 有K(2.92), 3.5, 2.4, 1.85系列。军工标准,全部现货.是数十家军工研究所长期合格供应商.
|
描述 |
频率范围 |
驻波比典型值 |
规格书 | |
|
3.5-KK |
3.5mm(f)-3.5mm(f) |
DC to 26.5GHz |
1.15 |
|
|
3.5-JJ |
3.5mm(m)-3.5mm(m) |
DC to 26.5GHz |
1.15 |
|
|
3.5-JK |
3.5mm(m)-3.5mm(f) |
DC to 26.5GHz |
1.15 |
|
|
2.4/3.5-JJ |
2.4mm(m)-3.5mm(m) |
DC to 26.5GHz |
1.15 |
|
|
2.4/3.5-JK |
2.4mm(m)-3.5mm(f) |
DC to 26.5GHz |
1.15 |
|
|
2.4/3.5-KJ |
2.4mm(f)-3.5mm(m) |
DC to 26.5GHz |
1.15 |
|
|
2.4/3.5-KK |
2.4mm(f)-3.5mm(f) |
DC to 26.5GHz |
1.15 |
|
|
3.5/ 2.92 -JJ |
3.5mm(m)-2.92mm(m) |
DC to 26.5GHz |
1.15 |
|
|
3.5/ 2.92 -JK |
3.5mm(m)-2.92mm(f) |
DC to 26.5GHz |
1.15 |
|
|
3.5/2.92 -KJ |
3.5mm(f)-2.92mm(m) |
DC to 26.5GHz |
1.15 |
|
|
3.5/ 2.92 -KK |
3.5mm(f)-2.92mm(f) |
DC to 26.5GHz |
1.15 |
|
|
1.85 /3.5-KJ |
1.85mm(f)- 3.5mm(M) |
DC to 33GHz |
1.15 |
|
|
1.85 /3.5-KK |
1.85mm(f)- 3.5mm(f) |
DC to 33GHz |
1.15 |
|
|
1.85 /3.5-JK |
1.85mm(m)- 3.5mm(f) |
DC to 33GHz |
1.15 |
|
|
1.85 /3.5-JJ |
1.85mm(m)-3.5mm(m) |
DC to 33GHz |
1.15 |
|
|
2.92-JK |
2.92mm(m)-2.92mm(f) |
DC to 40GHz |
1.15 |
|
|
2.92-KK |
2.92mm(f)-2.92mm(f) |
DC to 40GHz |
1.15 |
|
|
2.92-JJ |
2.92mm(m)-2.92mm(m) |
DC to 40GHz |
1.15 |
|
|
2.92-KFK |
2.92(f)-2.92(f)with flange |
DC to 40GHz |
1.15 |
|
|
2.4/ 2.92 -JJ |
2.4mm(m)-2.92mm(m) |
DC to 40GHz |
1.15 |
|
|
|
2.4mm(m)-2.92mm(f) |
DC to 40GHz |
1.15 |
|
|
2.4/ 2.92 -KJ |
2.4mm(f)-2.92mm(m) |
DC to 40GHz |
1.15 |
|
|
2.4/ 2.92 -KK |
2.4mm(f)-2.92mm(f) |
DC to 40GHz |
1.15 |
|
|
2.92/1.85-JJ |
2.92mm(m)-1.85mm(m) |
DC to 40GHz |
1.15 |
|
|
2.92/1.85-JK |
2.92mm(m)-1.85mm(f) |
DC to 40GHz |
1.15 |
|
|
2.92/1.85-KJ |
2.92mm(f)-1.85mm(m) |
DC to 40GHz |
1.15 |
|
|
2.92/1.85-KK |
2.92mm(f)-1.85mm(f) |
DC to 40GHz |
1.15 |
|
|
2.4-JJ |
2.4mm(m)-2.4mm(m) |
DC to 50GHz |
1.15 |
|
|
2.4-KK |
2.4mm(f)-2.4mm(f) |
DC to 50GHz |
1.15 |
|
|
2.4-JK |
2.4mm(m)-2.4mm(f) |
DC to 50GHz |
1.15 |
|
|
1.85 /2.4-KJ |
1.85mm(f)- 2.4mm(m) |
DC to 50GHz |
1.15 |
|
|
1.85 /2.4-KK |
1.85mm(f)- 2.4mm(f) |
DC to 50GHz |
1.15 |
|
|
1.85 /2.4-JK |
1.85mm(m)- 2.4mm(f) |
DC to 50GHz |
1.15 |
|
|
1.85 /2.4-JJ |
1.85mm(m)-2.4mm(m) |
DC to 50GHz |
1.15 |
|
|
1.85 -JJ |
1.85mm(m)-1.85mm(m) |
DC to 65GHz |
1.15 |
|
|
1.85 -JK |
1.85mm(m)-1.85mm(f) |
DC to 65GHz |
1.15 |
|
|
1.85-KK |
1.85mm(f)-1.85mm(f) |
DC to 65GHz |
1.15 |
|
|
SMA/2.4-JJ |
SMA(m)-2.4mm(m) |
DC to 18GHz |
1.15 |
|
|
SMA/2.4-JK |
SMA(m)-2.4mm(f) |
DC to 18GHz |
1.15 |
|
|
SMA/2.4-KJ |
SMA(f)-2.4mm(m) |
DC to 18GHz |
1.15 |
|
|
SMA/2.4-KK |
SMA(f)-2.4mm(f) |
DC to 18GHz |
1.15 |
|
|
SMA/2.92-JJ |
SMA(m)-2.92mm(m) |
DC to 18GHz |
1.15 |
|
|
SMA/2.92-JK |
SMA(m)-2.92mm(f) |
DC to 18GHz |
1.15 |
|
|
SMA/2.92-KJ |
SMA(f)-2.92mm(m) |
DC to 18GHz |
1.15 |
|
|
SMA/2.92-KK |
SMA(f)-2.92mm(f) |
DC to 18GHz |
1.15 |
|
|
3.5/N-JK |
3.5mm(m)-N(f) | ,
DC to 18GHz |
1.15 |
|
|
3.5/N-JJ |
3.5mm(m)-N(m) |
DC to 18GHz |
1.15 |
|
|
3.5/N-KJ |
3.5mm(f)-N(m) |
DC to 18GHz |
1.15 |
|
|
3.5/N-KK |
3.5mm(f)-N(f) |
DC to 18GHz |
1.15 |
|
|
2.92/N-JJ |
2.92mm(m)-N(m) |
DC to 18GHz |
1.15 |
|
|
2.92/N-JK |
2.92mm(m)-N(f) |
DC to 18GHz |
1.15 |
|
|
2.92/N-KJ |
2.92mm(f)-N(m) |
DC to 18GHz |
1.15 |
|
|
2.92/N-KK |
2.92mm(f)-N(f) |
DC to 18GHz |
1.15 |
|
|
2.4 /N-JJ |
2.4mm(m)-Type N(m) |
DC to 18GHz |
1.15 |
|
|
2.4/N-JK |
2.4mm(m)- Type N(f) |
DC to 18GHz |
1.15 |
|
|
2.4/N-KK |
2.4mm(f)- Type N(f) |
DC to 18GHz |
1.15 |
|
|
2.4 /N-KJ |
2.4mm(f)- Type N(m) |
DC to 18GHz |
1.15 |
|
