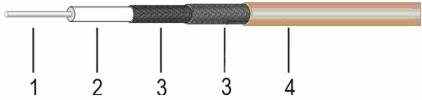

结构参数Construction Specification

材料Material

直径Diameter(mm)

1.内导体Inner Conductor

镀银铜包钢线Silver Plated Copper Clad Steel

0.94

2.绝缘体Dielectric

聚四氟乙烯PTFE

2.95

3.外导体Outer Conductor

双层镀银线编织

Double Silver Plated Copper Braid

3.95

4.护套Jacket

聚全氟乙丙烯FEP

4.95

电性能参数Electrical Characteristics

阻抗Impedance(Ohm)

50

电容Capacitance(pF/m)

96

速率Velocity(%)

70

弯曲半径Bending Radius(mm)

25

最大工作电压Max.Oper. Voltage(VMS)

1900

最大工作频率Max.Oper. Frequency (MHz)

8000

温度范围Operating Temp. (℃)

-55—+200

衰减Attenuation(Typical)

频率Frequency(MHz)

衰减Attenuation(dB/m)

100

0.125

400

0.256

1000

0.420

3000

0.781

5000

1.050
