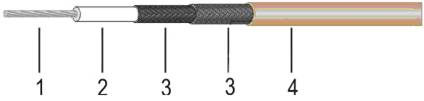

结构参数Construction Specification

材料Material

直径Diameter(mm)

1.内导体Inner Conductor

镀银铜线Silver Plated Copper

7×0.792

2.绝缘体Dielectric

聚四氟乙烯PTFE

7.24

3.外导体Outer Conductor

双层镀银线编织

Double Silver Plated Copper Braid

8.50

4.护套Jacket

聚全氟乙丙烯FEP

9.91

电性能参数Electrical Characteristics

阻抗Impedance(Ohm)

50

电容Capacitance(pF/m)

96

速率Velocity(%)

70

弯曲半径Bending Radius(mm)

51

最大工作电压Max.Oper. Voltage(VMS)

5000

最大工作频率Max.Oper. Frequency (MHz)

11000

温度范围Operating Temp. (℃)

-55—+200

衰减Attenuation(Typical)

频率Frequency(MHz)

衰减Attenuation(dB/m)

100

0.066

400

0.141

1000

0.236

3000

0.463

5000

0.640

11000

1.089
