功分器适用于射频及微波电路中作为功率分配使用，广泛应用于移动通讯领域及卫星雷达，电子对抗，测试测量等超宽带领域。 泰莱微波拥有雄厚的研发生产能力，生产的功分器具有频率特性好、性能稳定、精度高、功率大、可靠性高、安装工艺简单等特点。
我公司具有雄厚的设计和测试能力,对有特殊要求的产品均可提供定制化生产。
2路功分器
|
Model
Number |
Freq.
Range
(GHz) |
Insertion
Loss
(dB) |
VSWR |
Isolation
(dB) |
Amplitude
Balance
(dB) |
Phase
Balance
(°) |
Average
Power
(W) |
Connector |
Operating
Temperature
(℃) |
|
RS2W0210-S |
0.2-1.0 |
1.2 |
1.3 |
20 |
0.3 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W0410-S |
0.4-1 |
0.6 |
1.3 |
22 |
0.35 |
3 |
30 |
SMA-F |
-55~+85 |
|
RS2W0351850-N |
0.35-1.85 |
0.4 |
1.25 |
- |
- |
- |
20 |
N-F |
-30~+70 |
|
RS2W0320-S |
0.3-2.0 |
1 |
1.3 |
20 |
- |
- |
30 |
SMA-F |
-55~+85 |
|
RS2W0520-S |
0.5-2.0 |
0.5 |
1.3 |
18 |
0.3 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W2224-S |
2.2-2.4 |
0.4 |
1.3 |
30 |
0.2 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W0825-S |
0.8-2.5 |
0.3 |
1.3 |
22 |
0.3 |
2 |
50 |
SMA-F |
-45~+85 |
|
RS2W0825-N |
0.8-2.5 |
0.3 |
1.3 |
22 |
0.3 |
2 |
50 |
N-F |
-45~+85 |
|
RS2W0330-S |
0.3-3.0 |
1.3 |
1.4 |
18 |
0.5 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W2040-S |
2-4 |
0.4 |
1.3 |
20 |
0.2 |
5 |
50 |
SMA-F |
-55~+85 |
|
RS2W1040-S |
1-4 |
0.5 |
1.25 |
20 |
0.2 |
3 |
30 |
SMA-F |
-55~+85 |
|
RS2W0860-S |
0.8-6 |
1 |
1.3 |
20 |
0.3 |
5 |
30 |
SMA-F |
-40~+70 |
|
RS2W0560-S |
0.5-6 |
1.1 |
1.3 |
18 |
0.3 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W3860-S |
0.38-6 |
1.5 |
1.5 |
15-18 |
- |
- |
30 |
SMA-F |
-30~+70 |
|
RS2W2080-S |
2-8 |
0.8 |
1.3 |
20 |
0.3 |
5 |
30 |
SMA-F |
-45~+85 |
|
RS2W1080-S |
1-8 |
1 |
1.3 |
18 |
0.4 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W80120-S |
8-12 |
0.6 |
1.4 |
20 |
0.3 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W20124-S |
2-12.4 |
1.2 |
1.5 |
18 |
0.6 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W60180-S |
6-18 |
1 |
1.5 |
18 |
0.5 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W40180-S |
4-18 |
1.2 |
1.5 |
16 |
0.4 |
5 |
30 |
SMA-F |
-45~+85 |
|
RS2W20180-S |
2-18 |
1.2 |
1.5 |
17 |
0.3 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W10180-S |
1-18 |
1.6 |
1.5 |
16 |
0.5 |
7 |
30 |
SMA-F |
-55~+85 |
|
RS2W05180-S |
0.5-18 |
2.5 |
1.6 |
15 |
0.5 |
8 |
50 |
SMA-F |
-45~+85 |
|
RS2W60200-S |
6-20 |
1 |
1.5 |
16 |
0.5 |
8 |
30 |
SMA-F |
-55~+85 |
|
RS2W10270-S |
1-27 |
2.4 |
1.6 |
16 |
0.4 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS2W150400-K |
15-40 |
1.5 |
1.8 |
15 |
0.5 |
6 |
10 |
2.92-F |
-55~+85 |
|
RS2W40400-K |
4-40 |
1.8 |
1.6 |
18 |
0.3 |
4 |
20 |
2.92-F |
-55~+85 |
|
RS2W20400-K |
2-40 |
1.8 |
1.6 |
18 |
0.3 |
4 |
20 |
2.92-F |
-55~+85 |
|
RS2W10400-K |
1-40 |
3 |
1.6 |
18 |
0.4 |
6 |
20 |
2.92-F |
-55~+85 |
备注：频率可以接受客户定制。
3路功分器
|
Model
Number |
Freq.
Range
(GHz) |
Insertion
Loss
(dB) |
VSWR |
Isolation
(dB) |
Amplitude
Balance
(dB) |
Phase
Balance
(°) |
Average
Power
(W) |
Connector |
Operating
Temperature
(℃) |
|
RS3W0510-S |
0.5-1 |
0.6 |
1.3 |
17 |
0.5 |
7 |
30 |
SMA-F |
-45~+85 |
|
RS3W0825-S |
0.8-2.5 |
0.6 |
1.3 |
22 |
0.35 |
7 |
30 |
SMA-F |
-45~+85 |
|
RS3W0825-N |
0.8-2.5 |
0.6 |
1.3 |
22 |
0.35 |
7 |
30 |
N-F |
-45~+85 |
|
RS3W0351850-N |
0.35-1.85 |
0.5 |
1.25 |
|
|
|
20 |
N-F |
-30~+70 |
|
RS3W1040-S |
1-4 |
1.2 |
1.4 |
18 |
0.5 |
7 |
30 |
SMA-F |
-55~+85 |
|
RS3W2060-S |
2-6 |
1.3 |
1.4 |
20 |
0.5 |
7 |
30 |
SMA-F |
-55~+85 |
|
RS3W2080-S |
2-8 |
1.1 |
1.4 |
18 |
0.9 |
8 |
30 |
SMA-F |
-55~+85 |
|
RS3W80124-S |
8-12.4 |
1.2 |
1.6 |
15 |
0.4 |
10 |
30 |
SMA-F |
-55~+85 |
|
RS3W50180-S |
5-18 |
1.5 |
1.7 |
17 |
0.7 |
10 |
30 |
SMA-F |
-55~+85 |
|
RS3W20180-S |
2-18 |
1.9 |
1.45 |
18 |
0.5 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS3W10180-S |
1-18 |
2 |
1.45 |
18 |
0.5 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS3W05180-S |
0.5-18 |
2.7 |
1.6 |
16 |
0.8 |
12 |
30 |
SMA-F |
-55~+85 |
|
RS3W80265-S |
8-26.5 |
1.4 |
1.6 |
18 |
0.5 |
6 |
30 |
SMA-F |
-55~+85 |
备注：频率可以接受客户定制。
4路功分器
|
Model
Number |
Freq.
Range
(GHz) |
Insertion
Loss
(dB) |
VSWR |
Isolation
(dB) |
Amplitude
Balance
(dB) |
Phase
Balance
(°) |
Average
Power
(W) |
Connector |
Operating
Temperature
(℃) |
|
RS4W0105-N |
0.1-0.5 |
1.2 |
1.25 |
20 |
0.3 |
5 |
50 |
N-F |
-40~+70 |
|
RS4W0306-S |
0.3-0.6 |
0.7 |
1.3 |
22 |
0.3 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS4W0510-S |
0.5-1 |
0.7 |
1.5 |
20 |
0.4 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS4W0351850-N |
0.35-1.85 |
0.6 |
1.25 |
|
|
|
20 |
N-F |
-30~+85 |
|
RS4W0825-S |
0.8-2.5 |
0.7 |
1.3 |
22 |
0.35 |
6 |
30 |
SMA-F |
-55~+85 |
|
RS4W0825-N |
0.8-2.5 |
0.7 |
1.3 |
22 |
0.35 |
6 |
30 |
N-F |
-55~+85 |
|
RS4W0827-S |
0.8-2.7 |
0.7 |
1.35 |
22 |
0.35 |
6 |
30 |
SMA-F |
-55~+85 |
|
RS4W0430-S |
0.4-3 |
2 |
1.4 |
16 |
1 |
10 |
30 |
SMA-F |
-55~+85 |
|
RS4W2040-S |
2-4 |
0.5 |
1.25 |
20 |
0.3 |
3 |
30 |
SMA-F |
-55~+85 |
|
RS4W1040-S |
1-4 |
1 |
1.3 |
20 |
0.3 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS4W0840-S |
0.8-4 |
1.8 |
1.3 |
20 |
0.5 |
8 |
30 |
SMA-F |
-45~+85 |
|
RS4W0560-S |
0.5-6 |
2 |
1.5 |
16 |
0.5 |
4 |
30 |
SMA-F |
-45~+85 |
|

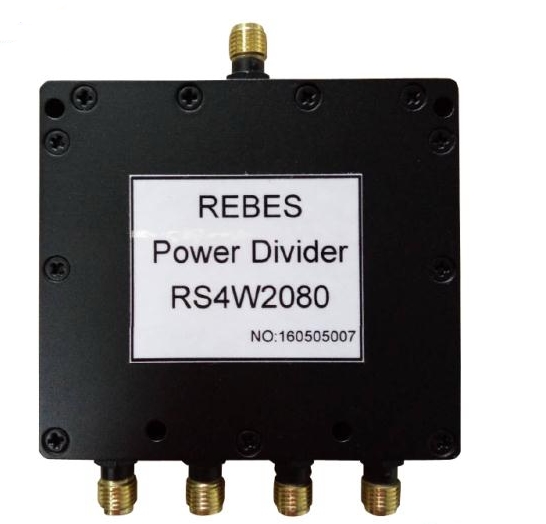

RS4W2080-S |
2-8 |
1.2 |
1.4 |
20 |
0.4 |
5 |
50 |
SMA-F |
-45~+85 |
|
RS4W1080-S |
1-8 |
2 |
1.5 |
15 |
0.8 |
10 |
30 |
SMA-F |
-55~+85 |
|
RS4W80120-S |
8-12 |
1 |
1.5 |
18 |
0.5 |
8 |
30 |
SMA-F |
-55~+85 |
|
RS4W4080-S |
4-8 |
0.6 |
1.3 |
18 |
0.3 |
3 |
30 |
SMA-F |
-55~+85 |
|
RS4W60180-S |
6-18 |
1.3 |
1.5 |
18 |
0.5 |
8 |
30 |
SMA-F |
-55~+85 |
|
RS4W40180-S |
4-18 |
2.5 |
1.8 |
15 |
0.8 |
8 |
30 |
SMA-F |
-55~+85 |
|
RS4W20180-S |
2-18 |
2.2 |
1.65 |
15 |
0.6 |
10 |
30 |
SMA-F |
-55~+85 |
|
RS4W10180-S |
1-18 |
3 |
1.7 |
15 |
0.8 |
10 |
30 |
SMA-F |
-55~+85 |
|
RS4W05180-S |
0.5-18 |
4 |
1.6 |
18 |
0.4 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS4W50265-S |
5-26.5 |
2.8 |
1.8 |
15 |
0.6 |
8 |
20 |
SMA-F |
-55~+85 |
|
RS4W180310-K |
18-31 |
7.6 |
1.6 |
16 |
0.5 |
8 |
30 |
2.92-F |
-55~+85 |
|
RS4W150400-K |
15-40 |
2.9 |
1.65 |
18 |
0.5 |
7 |
20 |
2.92-F |
-55~+85 |
|
RS4W50400-K |
5-40 |
4.6 |
2.0 |
12 |
0.6 |
12 |
10 |
2.92-F |
-55~+85 |
备注：频率可以接受客户定制。
6路功分器
|
Model
Number |
Freq.
Range
(GHz) |
Insertion
Loss
(dB) |
VSWR |
Isolation
(dB) |
Amplitude
Balance
(dB) |
Phase
Balance
(°) |
Average
Power
(W) |
Connector |
Operating
Temperature
(℃) |
|
RS6W0825-S |
0.8-2.5 |
1.2 |
1.4 |
20 |
0.6 |
6 |
30 |
SMA-F |
-55~+85 |
|
RS6W0825-N |
0.8-2.5 |
1.2 |
1.4 |
20 |
0.6 |
6 |
30 |
N-F |
-55~+85 |
|
RS6W2060-S |
2-6 |
1.6 |
1.5 |
18 |
1 |
9 |
30 |
SMA-F |
-55~+85 |
|
RS6W0320-S |
0.3-2 |
3.5 |
1.6 |
16 |
|
|
30 |
SMA-F |
-55~+85 |
|
RS6W4080-S |
4-8 |
1.6 |
1.6 |
16 |
0.8 |
8 |
30 |
SMA-F |
-55~+85 |
|
RS6W80120-S |
8-12 |
1.6 |
1.5-1.7 |
18 |
0.6 |
9 |
30 |
SMA-F |
-55~+85 |
|
RS6W50180-S |
5-18 |
2 |
1.8 |
15 |
0.8 |
10 |
30 |
SMA-F |
-55~+85 |
|
RS6W120180-S |
12-18 |
2 |
1.5-1.8 |
15 |
0.8 |
9 |
30 |
SMA-F |
-55~+85 |
备注：频率可以接受客户定制。
8路功分器
|
Model
Number |
Freq.
Range
(GHz) |
Insertion
Loss
(dB) |
VSWR |
Isolation
(dB) |
Amplitude
Balance
(dB) |
Phase
Balance
(°) |
Average
Power
(W) |
Connector |
Operating
Temperature
(℃) |
|
RS8W0510-S |
0.5-1 |
0.8 |
1.3 |
20 |
0.4 |
8 |
30 |
SMA-F |
-55~+85 |
|
RS8W0825-S |
0.8-2.5 |
1.2 |
1.3 |
20 |
0.5 |
8 |
30 |
SMA-F |
-55~+85 |
|
RS8W0825-N |
0.8-2.5 |
1.2 |
1.3 |
20 |
0.5 |
8 |
30 |
N-F |
-55~+85 |
|
RS8W0840-S |
0.8-4 |
2 |
1.4 |
18 |
0.7 |
10 |
40 |
SMA-F |
-55~+85 |
|
RS8W0560-S |
0.5-6 |
3.2 |
1.6 |
15 |
1 |
10 |
30 |
SMA-F |
-30~+70 |
|
RS8W2080-S |
2-8 |
2 |
1.6 |
17 |
0.7 |
8 |
30 |
SMA-F |
-55~+85 |
|
RS8W80124-S |
8-12.4 |
1.5 |
1.6 |
16 |
0.5 |
8 |
30 |
SMA-F |
-55~+85 |
|
RS8W60180-S |
6-18 |
2.5 |
1.8 |
15 |
1 |
10 |
30 |
SMA-F |
-55~+85 |
|
RS8W20180-S |
2-18 |
4 |
1.9 |
13 |
1 |
15 |
30 |
SMA-F |
-55~+85 |
|
RS8W05180-S |
0.5-18 |
7 |
1.6 |
16 |
0.4 |
5 |
30 |
SMA-F |
-55~+85 |
|
RS8W60265-S |
6-26.5 |
2.9 |
1.6 |
16 |
0.6 |
6 |
30 |
SMA-F |
-55~+85 |
|
RS8W180400-K |
18-40 |
3.2 |
1.7 |
18 |
0.6 |
6 |
30 |
2.92 - F |
-55~+85 |
|
RS8W100400-K |
10-40 |
3.6 |
1.7 |
15 |
0.6 |
6 |
30 |
2.92 - F |
-55~+85 |
备注：其他频率可以接受客户定制。
16路功分器
|
Model
Number |
Freq.
Range
(GHz) |
Insertion
Loss
(dB) |
VSWR |
Isolation
(dB) |
Amplitude
Balance
(dB) |
Phase
Balance
(°) |
Average
Power
(W) |
Connector |
Operating
Temperature
(℃) |
|
RS16W0430-S |
0.4-3 |
3 |
1.6 |
18 |
1 |
12 |
30 |
SMA-F |
-55~+85 |
|
RS16W0830-S |
0.8-3 |
1.8 |
1.4 |
18 |
0.9 |
15 |
30 |
SMA-F |
-55~+85 |
|
RS16W30120-S |
3-12 |
4.5 |
1.8 |
15 |
1.5 |
20 |
30 |
SMA-F |
-55~+85 |
|
RS16W60180-S |
6-18 |
4 |
2 |
15 |
1 |
15 |
30 |
SMA-F |
-40~+75 |
|
RS16W88104-S |
8.8-10.4 |
3.5 |
1.8 |
16 |
1 |
15 |
30 |
SMA-F |
-55~+85 |
备注：其他频率可以接受客户定制。
电阻功分器
|
Model
Number |
Ways |
Freq.
Range
(GHz) |
Insertion
Loss (dB) |
VSWR |
Amplitude
Balance
(dB) |
Average
Power
(W) |
Connector |
Operating
Temperature
(℃) |
|
RS2DC30-N |
2 |
DC-3 |
6±0.8 |
1.3 |
0.5 |
1 |
N-F |
-55~+85 |
|
RS2DC30-S |
2 |
DC-3 |
6±0.7 |
1.25 |
0.7 |
1 |
SMA-F |
-55~+85 |
|
RS2DC60-S |
2 |
DC-6 |
6±0.9 |
1.3 |
0.9 |
1 |
SMA-F |
-55~+85 |
|
RS2DC180-N |
2 |
DC-18 |
6±1.8 |
1.8 |
1 |
1 |
N-F |
-45~+85 |
|
RS2DC180-S |
2 |
DC-18 |
6±1.5 |
1.7 |
1 |
1 |
SMA-F |
-55~+85 |
|
RS2DC270-S |
2 |
DC-26.5 |
8 |
1.55 |
0.4 |
1 |
SMA-F |
-55~+85 |
|
RS2DC400-K |
2 |
DC-40 |
7.5 |
1.5 |
0.4 |
1 |
2.92－F |
-55~+85 |
|
RS3DC30-S |
3 |
DC-3 |
9.5±0.7 |
1.25 |
0.7 |
1 |
SMA-F |
-55~+85 |
|
RS3DC60-S |
3 |
DC-6 |
9.5±1.5 |
1.3 |
1.5 |
1 |
SMA-F |
-55~+85 |
|
RS4DC20-S |
4 |
DC-2 |
12±0.7 |
1.3 |
0.7 |
1 |
SMA-F |
-55~+85 |
|
RS4DC30-S |
4 |
DC-3 |
12±0.8 |
1.3 |
0.8 |
1 |
SMA-F |
-55~+85 |
|
RS4DC60-S |
4 |
DC-6 |
12±1.5 |
1.5 |
1.5 |
1 |
SMA-F |
-55~+85 |
|
RS4DC130-S |
4 |
DC-13 |
12±2 |
1.5 |
- |
1 |
SMA-F |
-55~+85 |
|
RS6DC40-S |
6 |
DC-4 |
16±2.0 |
1.5 |
2 |
1 |
SMA-F |
-55~+85 |
|
RS6DC60-S |
6 |
DC-6 |
16±3.0 |
1.6 |
3 |
1 |
SMA-F |
-55~+85 |
|
RS8DC30-N |
8 |
DC-3 |
18±1.5 |
1.4 |
1 |
1 |
N-F |
-55~+85 |
|
RS8DC30-S |
8 |
DC-3 |
18±1.5 |
1.5 |
1.5 |
2 |
SMA-F |
-55~+85 |
备注：其他频率可以接受客户定制。
