Preamplifier
PAP-501
10 MHz - 1000 MHz
PAP-501
10 MHz - 1000 MHz
Com-Power model PAP-010 Preamplifier is intended for improving measurement system sensitivity of near field probes. It has a frequency range of 10 to 1000 MHz.. It is compact in size and is powered by external DC adapter.
|
Frequency:
|
10 MHz - 1000 MHz
|
|
Application:
|
EMI / EMC Measurements
|
|

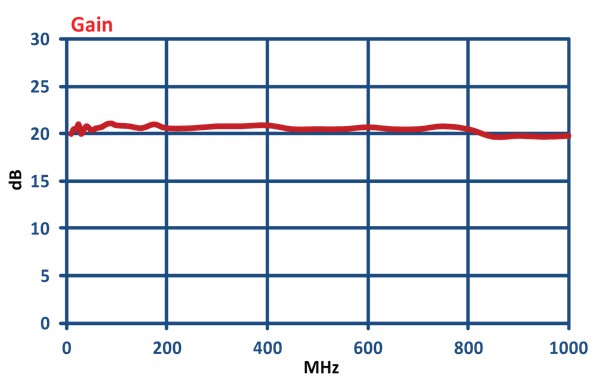

Gain
|
21 dB
|
|
Gain Flatness
|
± 2 dB |
|
Max Input
|
2 VDC, +10 dBm
|
|
Impedance
|
50 Ohms
|
|
Connector Type
|
BNC
|
|
Power:
|
6 VDC, 0.5 A
|
|
Size:
|
83 x 42 x 25 mm (3.27 " x 1.65" x 0.985")
|
|
Weight:
|
1 lb. (0.45 kg)
|
