Preamplifier
PAM-118A
500 MHz - 18 GHz
Com-Power model PAM-118A Preamplifier is intended for improving measurement sensitivity in the microwave frequency range during EMC compliance testing. It has a frequency range of 1 to 18 GHz. It has gain of 40 dB. It is powered by external wall mount DC adapter.PAM-118A
500 MHz - 18 GHz
|
Frequency:
|
500 MHz - 18 GHz
|
|
Application:
|
EMI / EMC Measurements
|
|
Gain
|
40 dB
|
|
Gain Flatness
|
+ 2.5 dB |
|
Noise Figure
|
3 dB max
|
|
P1dB
|
+12 dBm
|
|
Impedance I/O
|
50 Ohms
|
|
Connector Type
|
Precision N-type (female)
|
| Power: |
15 VDC, 500 mA
|
|
Size:
|
7.7" x 6.5" x 3.2" (18.4 x 15.6 x 7.7 cm) |
|
Weight:
|
2.5 lbs. (1.1 kg)
|

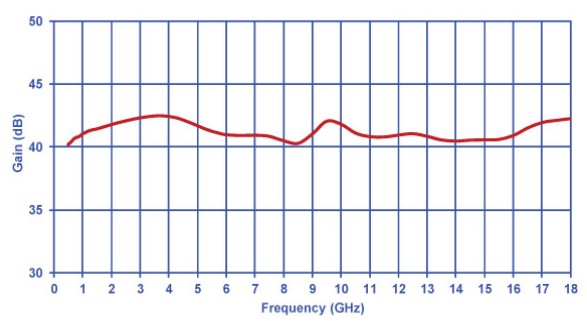

Typical Preamplifier model PAM-118A Gain
